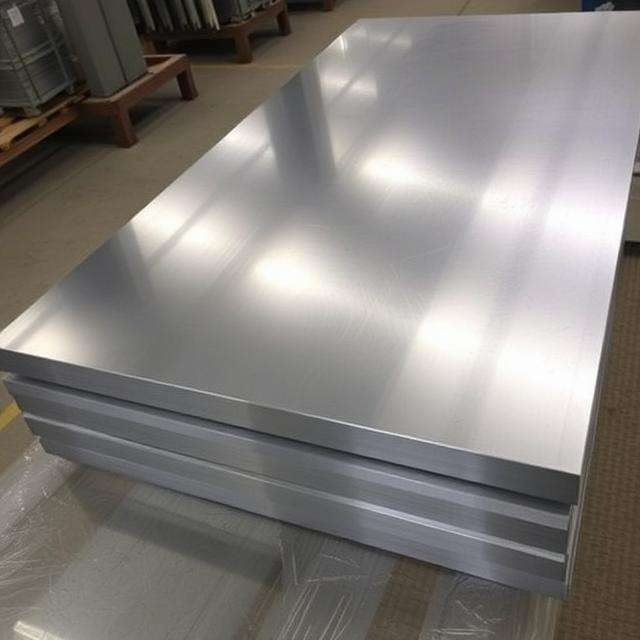

What Are Stainless Steel 347H Sheets & Plates?
We pride ourselves in being a leader in manufacturing, supplying, stocking, and exporting Stainless Steel 347H Sheets and Plates. We have been a name to be reckoned with in the international market because we have made a commitment to delivering high quality products. With years in the business, we ensure that Stainless Steel 347H Sheets and Plates live up to the best in the industry and deliver high performance in a variety of applications.
Table of Content
- SS 347H Sheets & Plates Specification Chart
- SS 347H Sheets & Plates Chemical Composition
- SS 347H Sheets & Plates Mechanical Properties
- Weight Chart Of SS 347H Sheets & Plates
- Stainless Steel 347H Sheets & Plates Price Per Kg
- People Also Search
- Application Of Industries
- Types Of SS 347H Sheets & Plates
Stainless Steel 347H Sheets & Plates, Stainless Steel 347H Sheets & Plates Manufacturers, Stainless Steel 347H Sheets & Plates Suppliers, Stainless Steel 347H Sheets & Plates Stockists, Stainless Steel 347H Sheets & Plates Exporters
Stainless Steel 347H is a high-carbon grade of Stainless Steel 347 and has been designed to offer higher strength and improved corrosion resistance at high-temperature conditions. It is used in those applications where high-temperature resistant grades are required such as aerospace, chemical processing, and power generation applications. The columbium and tantalum addition gives improved ability to withstand carbide precipitation and thus gives high corrosion resistance in high-temperature applications. It makes Stainless Steel 347H a very suitable material to be used in high-temperature applications where normal grades would be prone to failure.
Global Steel ensures that Stainless Steel 347H Sheets and Plates manufactured with us use the latest technology and high quality raw material. We have stringent quality controls in the production process to ensure that all the products meet the client specifications. We offer custom specifications or standard specifications in a range of Stainless Steel 347H Sheets and Plates to suit your needs.
Stainless Steel 347H Sheets & Plates Manufacturers in India, Stainless Steel 347H Sheets & Plates Suppliers in India, Stainless Steel 347H Sheets & Plates Stockists in India, Stainless Steel 347H Sheets & Plates Exporters in India
The versatility in application of Stainless Steel 347H renders the material ideal for many applications ranging from high-temperature chemical processing to heavy-duty engineering applications. The material finds application in components such as heat exchangers, reactor core components, components in furnaces, and exhaust systems. With exceptional weldability, formability, and endurance, Stainless Steel 347H remains the material of choice in applications demanding long-term performance.
At Global Steel, we work to provide the best quality Stainless Steel 347H Sheets and Plates to our esteemed customers. Do you require high-grade material for your next project or need to consult with us regarding the selection of the best grade of steel? We're here to help you. Trust Global Steel to deliver the best Stainless Steel 347H material to your requirements and beyond expectations.
Stainless Steel 347H Sheets & Plates Manufacturers in Mumbai, Stainless Steel 347H Sheets & Plates Suppliers in Mumbai, Stainless Steel 347H Sheets & Plates Stockists in Mumbai, Stainless Steel 347H Sheets & Plates Exporters in Mumbai
Stainless Steel 347H Sheets & Plates Specifications
| Standard | ASTM A240, ASME SA240 |
|---|---|
| Thickness | 0.1mm to 12 mm Thk |
| Sheet/Plate Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching. |
| Finish | Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated), Galvanized etc. |
Chemical Composition for Stainless Steel 347H Sheets & Plates
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| SS 347H | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | - |
Mechanical properties of Stainless Steel 347H Sheets & Plates
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Weight Chart Of Stainless Steel 347H Sheets & Plates
| Plate Thickness (mm) | Weight (kg/m) | kg/meter (width 1200mm) | kg/meter (width 1500mm) | kg/meter (width 1800mm) | kg/meter (width 2400mm) |
|---|---|---|---|---|---|
| 3 | 23.55 | 28.3 | 35.3 | 42.4 | 56.5 |
| 4 | 31.4 | 37.7 | 47.1 | 56.5 | 75.4 |
| 5 | 39.25 | 47.1 | 58.9 | 70.7 | 94.2 |
| 6 | 47.1 | 56.5 | 70.7 | 84.8 | 113 |
| 8 | 62.8 | 75.4 | 94.2 | 113 | 150.7 |
| 10 | 78.5 | 94 | 118 | 141 | 188 |
| 12 | 94.2 | 113 | 141 | 170 | 226 |
| 16 | 125.6 | 151 | 188 | 226 | 301 |
| 20 | 157 | 188 | 236 | 283 | 377 |
| 22 | 172.7 | 207 | 259 | 311 | 415 |
| 25 | 196.25 | 236 | 294 | 353 | 471 |
| 28 | 219.8 | 264 | 330 | 396 | 528 |
| 32 | 251.2 | 301 | 377 | 452 | 603 |
| 36 | 282.6 | 339 | 424 | 509 | 678 |
| 40 | 314 | 377 | 471 | 565 | 754 |
| 45 | 353.25 | 424 | 530 | 636 | 848 |
| 50 | 392.5 | 471 | 589 | 707 | 942 |
| 55 | 431.75 | 518 | 648 | 777 | 1036 |
| 60 | 471 | 565 | 707 | 848 | 1130 |
| 65 | 510 | 612 | 765 | 918 | 1224 |
| 70 | 549.5 | 659 | 824 | 989 | 1319 |
| 75 | 588.75 | 707 | 883 | 1060 | 1413 |
| 80 | 628 | 754 | 942 | 1130 | 1507 |
| 90 | 706.5 | 848 | 1060 | 1272 | 1696 |
| 100 | 785 | 942 | 1178 | 1413 | 1884 |
Stainless Steel 347H Sheets & Plates Price Per Kg
| Material | Price In INR | Price In USD |
|---|---|---|
| Stainless Steel 347H | ₹ 200 - Per kg | $ 2.5 - Per kg |
