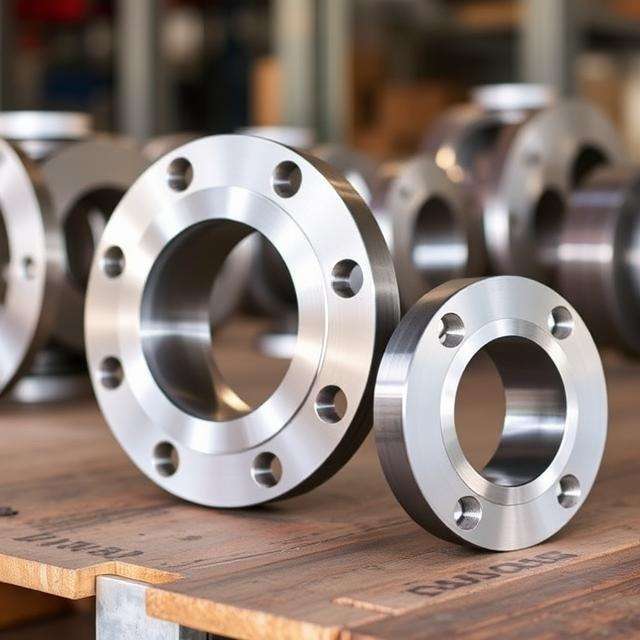

What Are Incoloy 825 Flanges?
Global Steel is a well-known producer, supplier, stockist, and exporter of high-grade Incoloy 825 flanges to industries requiring superior resistance to corrosion and excellent mechanical properties. Our Incoloy 825 flanges are manufactured with precision using high-grade nickel-iron-chromium alloy, and are enriched with molybdenum, copper, and titanium to exhibit outstanding resistance to reducing and oxidizing conditions.
Incoloy 825 Flanges, Incoloy 825 Flanges Manufacturers, Incoloy 825 Flanges Suppliers, Incoloy 825 Flanges Stockists, Incoloy 825 Flanges Exporters
Global Steel's high-quality and high-grade Incoloy 825 flanges are extensively used in industries where exposure to aggressive chemicals and high temperatures is routine, including those with applications in pollution control, oil and gas, marine engineering, chemical processing, and power generation. Global Steel insists on highest quality and high-grade material and follows high quality assurance methods to supply highly durable and strong Incoloy 825 flanges ensuring high performance and reliability in critical applications.
Our Incoloy 825 flanges are specifically designed to resist pitting, crevice corrosion, and intergranular attack, even under highly acidic and chloride-contaminated conditions. They are suited primarily to those applications entailing sulfuric, phosphoric, and nitric acids, guaranteeing long-term reliability under aggressive conditions. The high mechanical characteristics of Incoloy 825 make it a low-maintenance material with high-strength retention even under high temperatures as well as high weldability and formability.
Incoloy 825 Flanges Manufacturers in India, Incoloy 825 Flanges Suppliers in India, Incoloy 825 Flanges Stockists in India, Incoloy 825 Flanges Exporters in India
BGlobal Steel supplies a complete assortment of flanges, including slip-on, weld neck, blind, socket weld, lap joint, and threaded flanges, all manufactured according to international standards like ASTM, ASME, DIN, and ANSI. All our products are subjected to high-end quality control checks like chemical analysis, mechanical testing, as well as non-destructive tests to ensure defect-free and high-performance products.
cutting-edge machine tools and a talented team working towards delivering high-quality flanges in line with international industry parameters. Being a customer-centric organization, we provide customer-designed solutions as per project needs, where clients are provided with exactly what they require to run their operations smoothly.
Incoloy 825 Flanges Manufacturers in Mumbai, Incoloy 825 Flanges Suppliers in Mumbai, Incoloy 825 Flanges Stockists in Mumbai, Incoloy 825 Flanges Exporters in Mumbai
Incoloy 825 Flanges Specifications
| Standard | ASTM B564 / ASME SB564 |
|---|---|
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Size | 1/2" (15 NB) to 48" (1200NB) |
| Class/Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
Chemical Composition for Incoloy 825 Flanges
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| Incoloy 800 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | - | 8 – 11 | - |
Mechanical properties of Incoloy 825 Flanges
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Weight Chart Of Incoloy 825 Flanges
| Nominal Bore (NB) | Slip-On Flange (kg) | Weld Neck Flange (kg) | Blind Flange (kg) | Socket Weld Flange (kg) | Threaded Flange (kg) |
|---|---|---|---|---|---|
| 1/2" | 0.60 | 0.90 | 1.00 | 0.65 | 0.55 |
| 3/4" | 0.90 | 1.30 | 1.40 | 1.00 | 0.85 |
| 1" | 1.40 | 2.10 | 2.20 | 1.60 | 1.30 |
| 1 1/4" | 2.00 | 2.90 | 3.10 | 2.30 | 1.90 |
| 1 1/2" | 2.70 | 3.80 | 4.20 | 3.10 | 2.50 |
| 2" | 4.80 | 6.50 | 7.00 | 5.40 | 4.30 |
| 2 1/2" | 7.00 | 9.80 | 10.50 | 8.10 | 6.50 |
| 3" | 9.50 | 13.00 | 14.00 | 10.80 | 8.50 |
| 4" | 16.00 | 21.00 | 23.00 | 17.50 | 14.00 |
| 6" | 30.00 | 42.00 | 46.00 | 35.00 | 27.50 |
| 8" | 55.00 | 76.00 | 84.00 | 63.50 | 50.00 |
| 10" | 85.00 | 118.00 | 130.00 | 98.00 | 78.00 |
| 12" | 125.00 | 170.00 | 185.00 | 140.00 | 110.00 |
Incoloy 825 Flanges Price Per Kg
| Material | Price In INR | Price In USD |
|---|---|---|
| Incoloy 800 | ₹1,350 - Per kg | $20 to $30 - Per kg |
